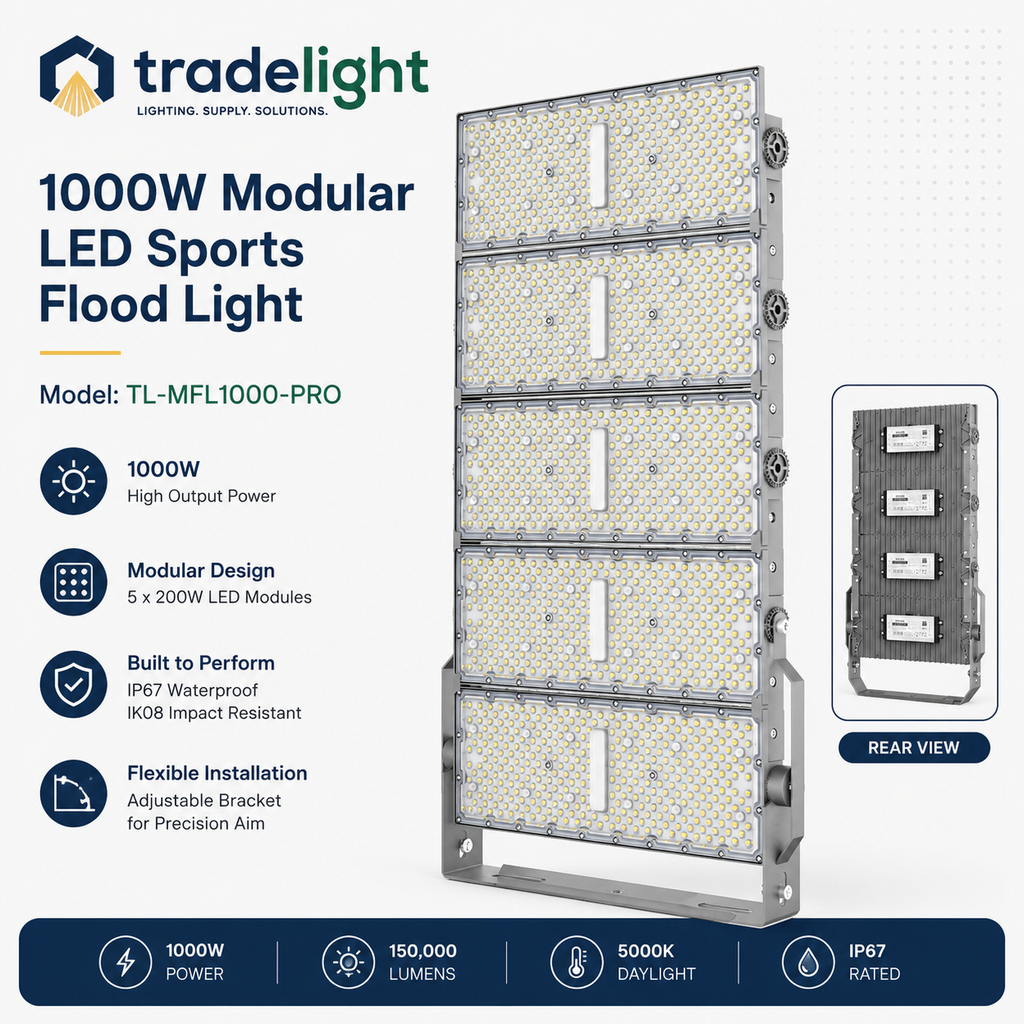

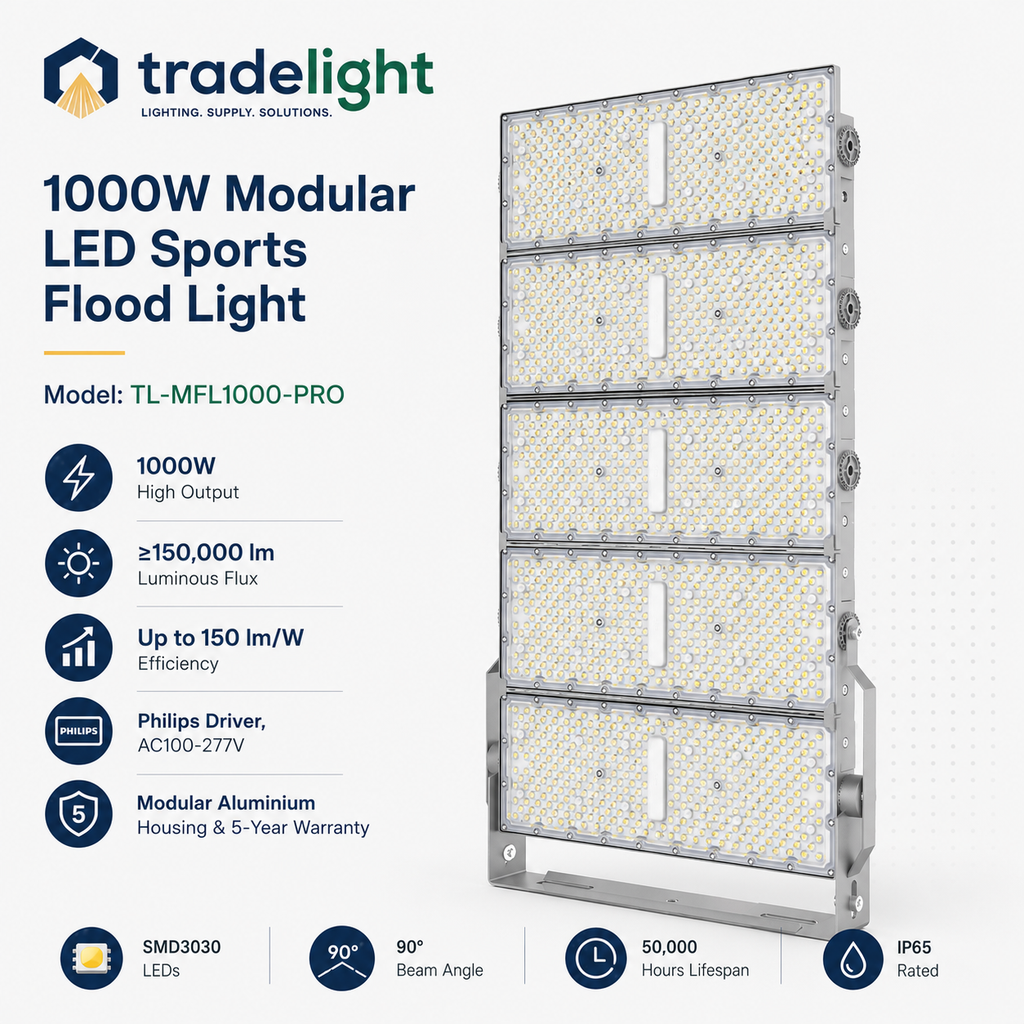

1000W Modular LED Sports Flood Light
1000W Modular LED Sports Flood Light
1000W Modular LED Sports Flood Light
Professional 1000W modular LED sports flood light designed for football fields, tennis courts, sports complexes, racing tracks, industrial yards, ports, airports, large parking areas and logistics centers.
≥150,000 lm
Philips Driver
90° Sports Lighting
5 Years
Product Overview
The TradeLight TL-MFL1000-PRO is a 1000W modular LED sports flood light built for high-output, reliable and uniform illumination. Its modular aluminium body, Philips driver option and 90° beam angle make it suitable for sports fields, commercial outdoor areas and demanding industrial lighting projects.
1000W Modular LED Sports Flood Light
High-output modular sports lighting solution for fields, courts and large outdoor areas.
High Output Sports Lighting
Delivers ≥150,000 lm luminous output with up to 150 lm/W efficiency.
Project Supply Ready
Suitable for electricians, contractors, sports venues, industrial sites and large-area lighting projects.
Key Selling Points
Built for Professional Outdoor Lighting
1000W power, ≥150,000 lm output, Philips driver option, IP65 rating and 5 years warranty.
Lighting Effect
Designed for bright, uniform and reliable field illumination across sports venues and large outdoor areas.

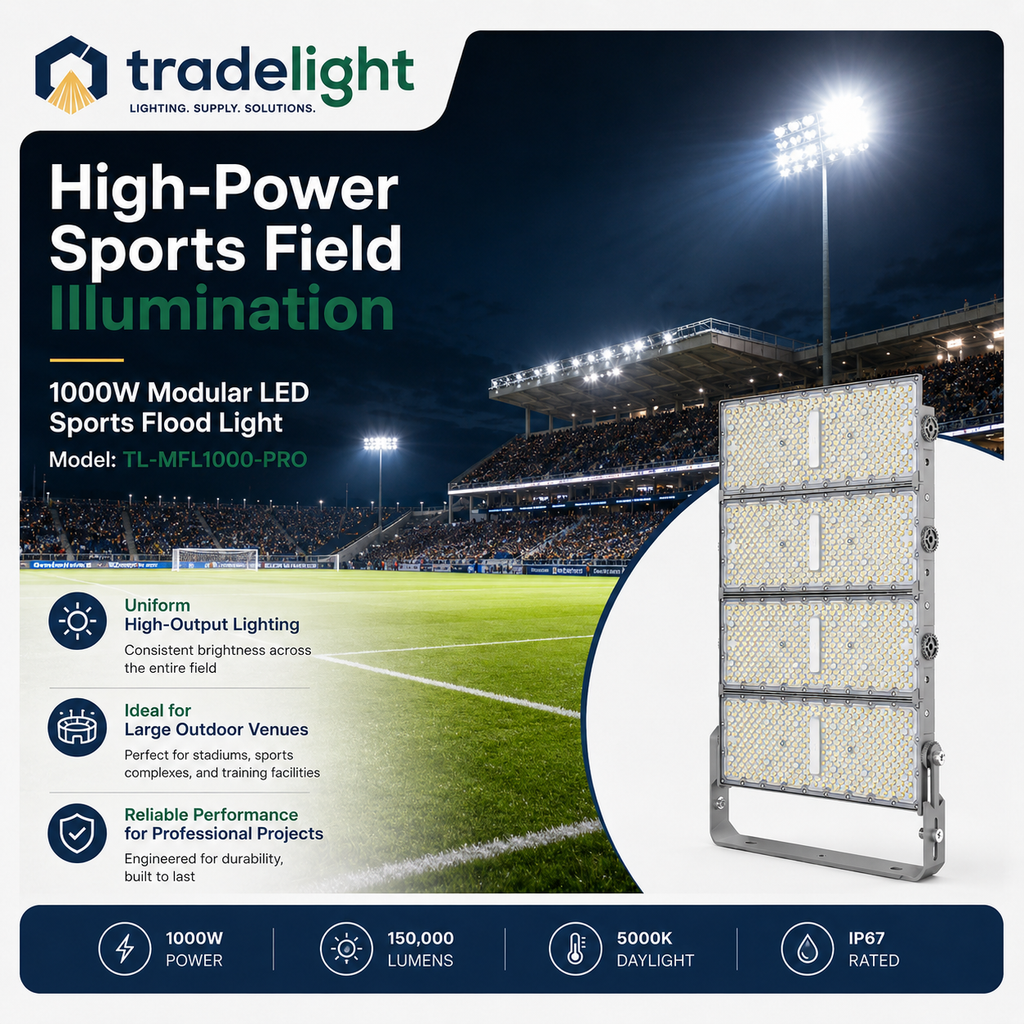

High-Power Sports Field Illumination
Suitable for football fields, soccer stadiums, training grounds and outdoor sports complexes.
Wide Application
The TL-MFL1000-PRO is suitable for both sports lighting and commercial large-area outdoor lighting projects.
Wide Application Areas
Football fields, tennis courts, stadiums, racing tracks, ports, airports, parking lots and logistics centers.
High-output field lighting for match areas, training areas and sports venues.
Uniform outdoor court illumination for recreational and commercial sports facilities.
Large-area lighting for venues, tracks and perimeter lighting projects.
Reliable lighting for open operational areas and demanding outdoor environments.
Wide-area illumination for safety, visibility and night operations.

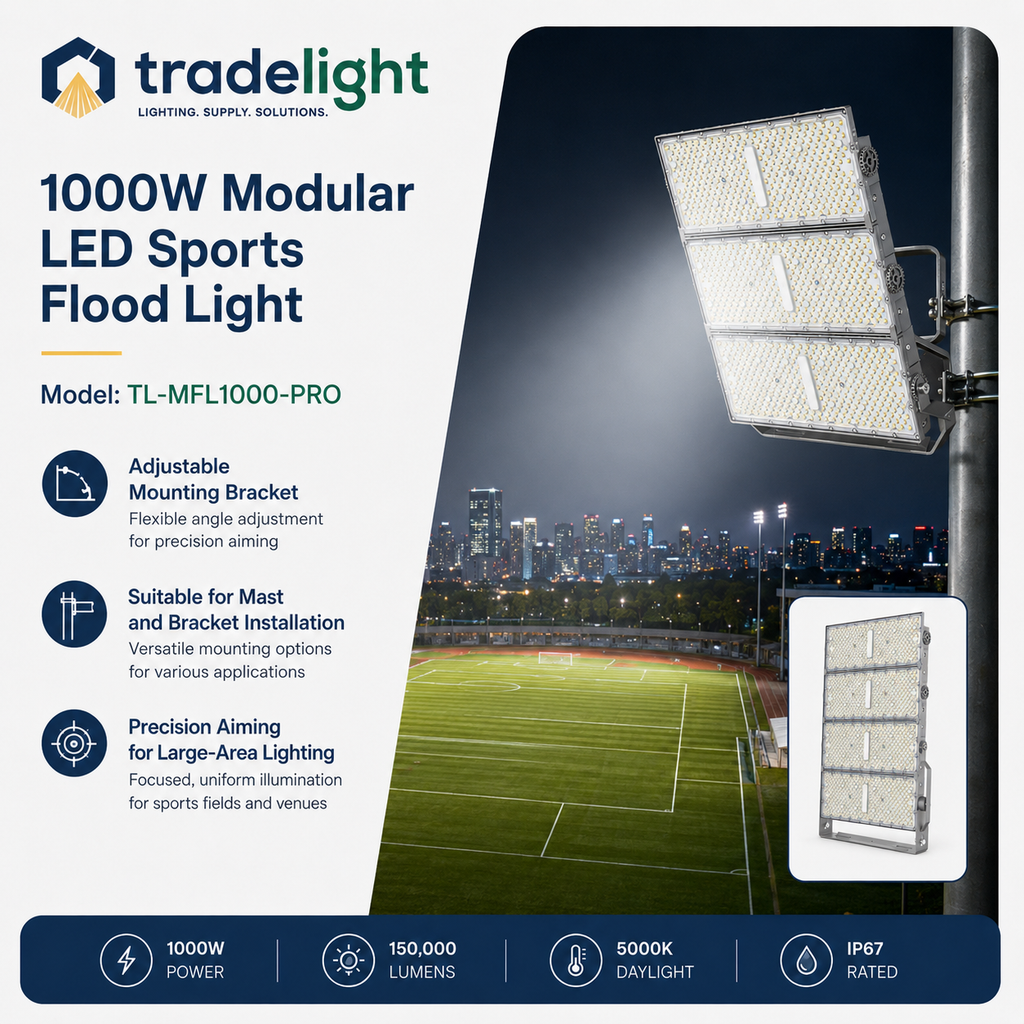

Installation Scene
Designed for pole, mast, cross-arm or structural bracket installation with adjustable aiming angles.
Flexible Sports Lighting Installation
Adjust tilt and aiming angle according to the field layout and lighting requirement.

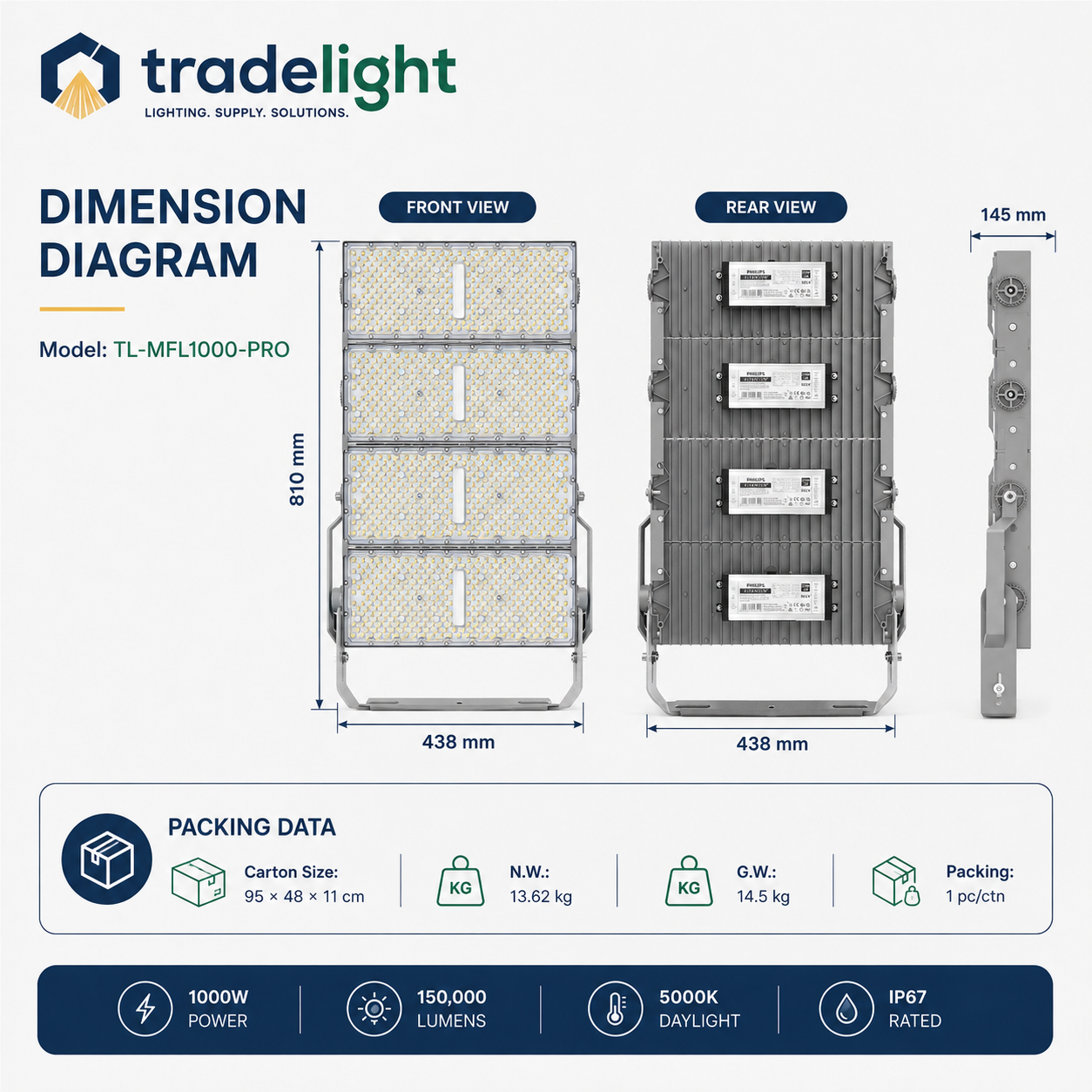

Dimension Diagram
Product Dimensions
Fixture size: 438 × 810 × 145 mm.

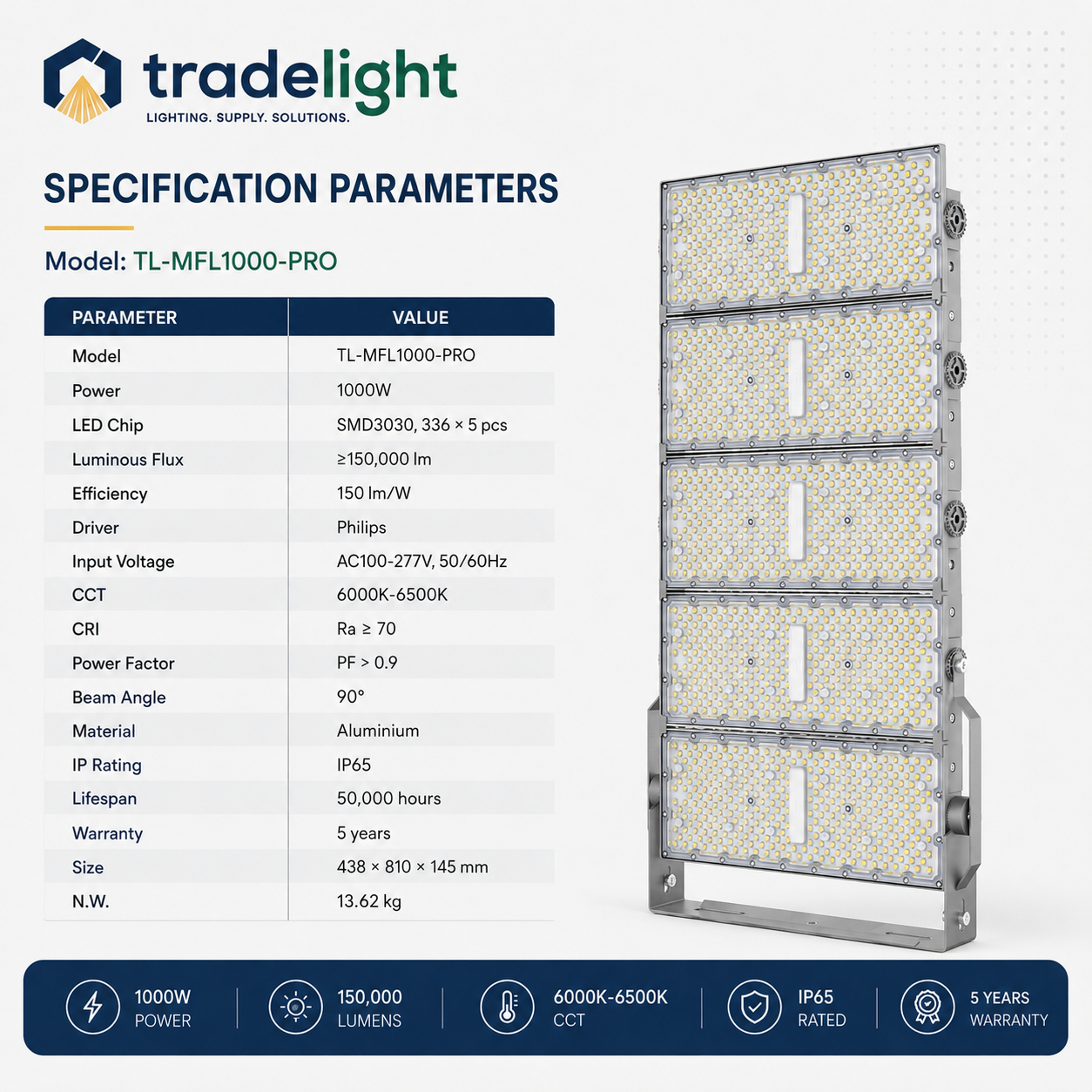

Technical Specifications
Specification Overview
1000W modular sports flood light with ≥150,000 lm output, 90° beam angle and IP65 protection.
| Product Name | 1000W Modular LED Sports Flood Light |
|---|---|
| Model Code | TL-MFL1000-PRO |
| Power | 1000W |
| LED Chip | SMD3030 × 336 × 5 pcs |
| Luminous Flux | ≥150,000 lm |
| Luminous Efficiency | 150 lm/W |
| Driver | Philips AC100–277V option |
| Input Voltage | AC100–277V, 50/60Hz |
| CCT | 6000K–6500K |
| CRI | Ra ≥ 70 |
| Power Factor | PF > 0.9 |
| Beam Angle | 90° |
| Material | Aluminium |
| IP Rating | IP65 |
| Product Size | 438 × 810 × 145 mm |
| Net Weight | 13.62 kg |
| Carton Size | 95 × 48 × 11 cm |
| Gross Weight | 14.5 kg / carton |
| Packing | 1 pc / carton |
| Lifespan | 50,000 hours |
| Warranty | 5 years |
Need the full product datasheet? Download TL-MFL1000-PRO 1000W Datasheet
Installation & Project Notes
Mounting
Install on a suitable pole, mast, cross-arm or structural bracket.
Aiming
Adjust tilt and aiming angle according to the lighting layout and field requirement.
Electrical Installation
Installation should be completed by a qualified electrician according to local regulations.
FAQ
Is this 1000W sports flood light suitable for football fields?
Yes. It is suitable for football fields, training grounds and sports area lighting projects.
Can it be used for tennis courts and sports complexes?
Yes. The 90° beam angle is suitable for outdoor courts and commercial sports lighting applications.
Can it be used for industrial yards and parking areas?
Yes. It is also suitable for ports, airports, industrial yards, logistics centers and large parking lots.
Do you support bulk orders?
Yes. TradeLight supports contractor orders, project supply and bulk purchase enquiries.
Need 1000W Sports Flood Lights for Your Project?
Contact TradeLight for bulk pricing, project support and commercial sports lighting supply.
