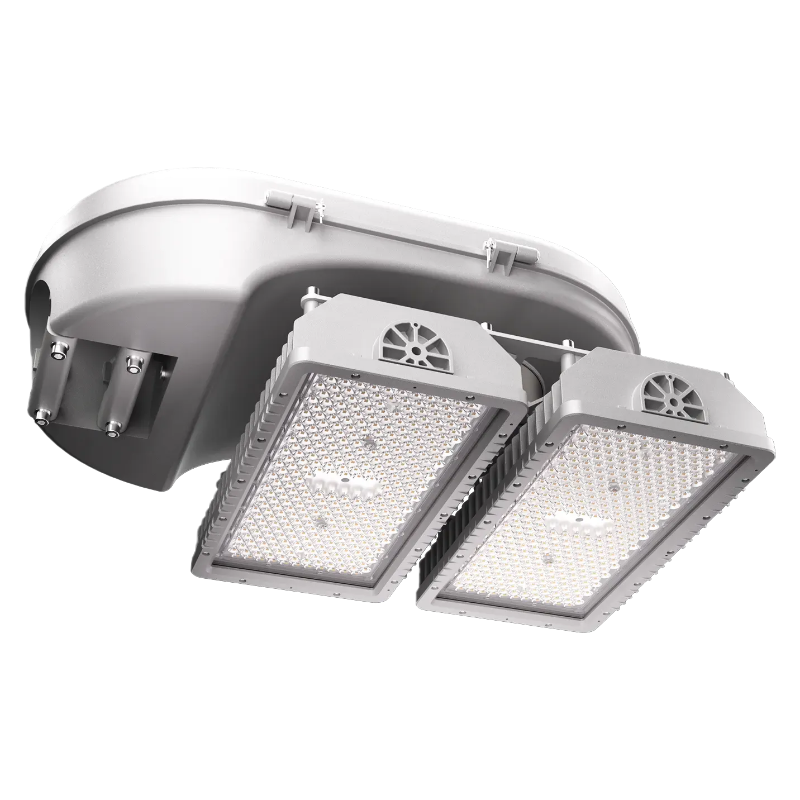

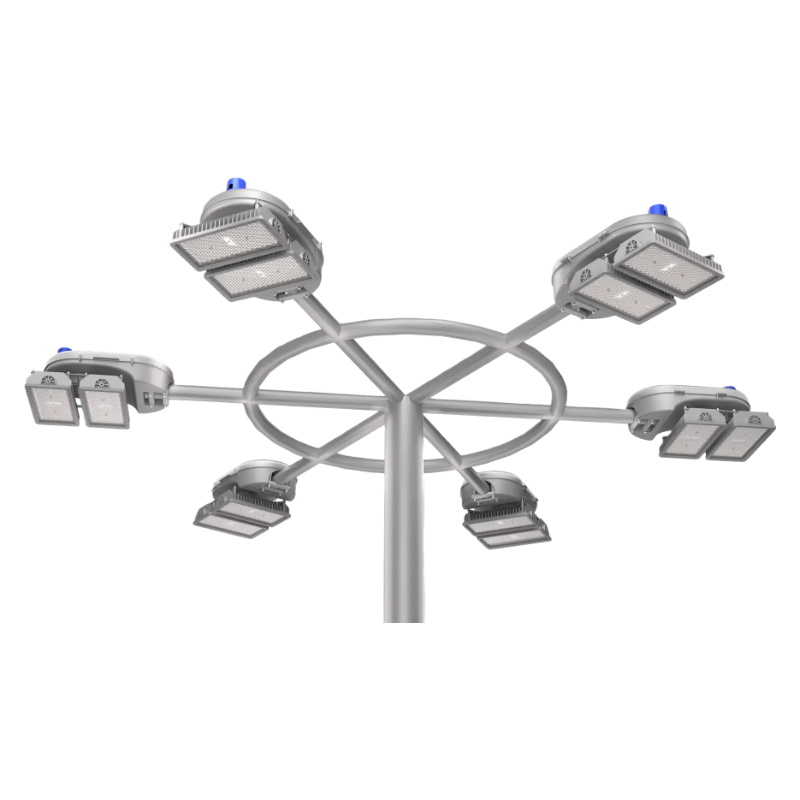

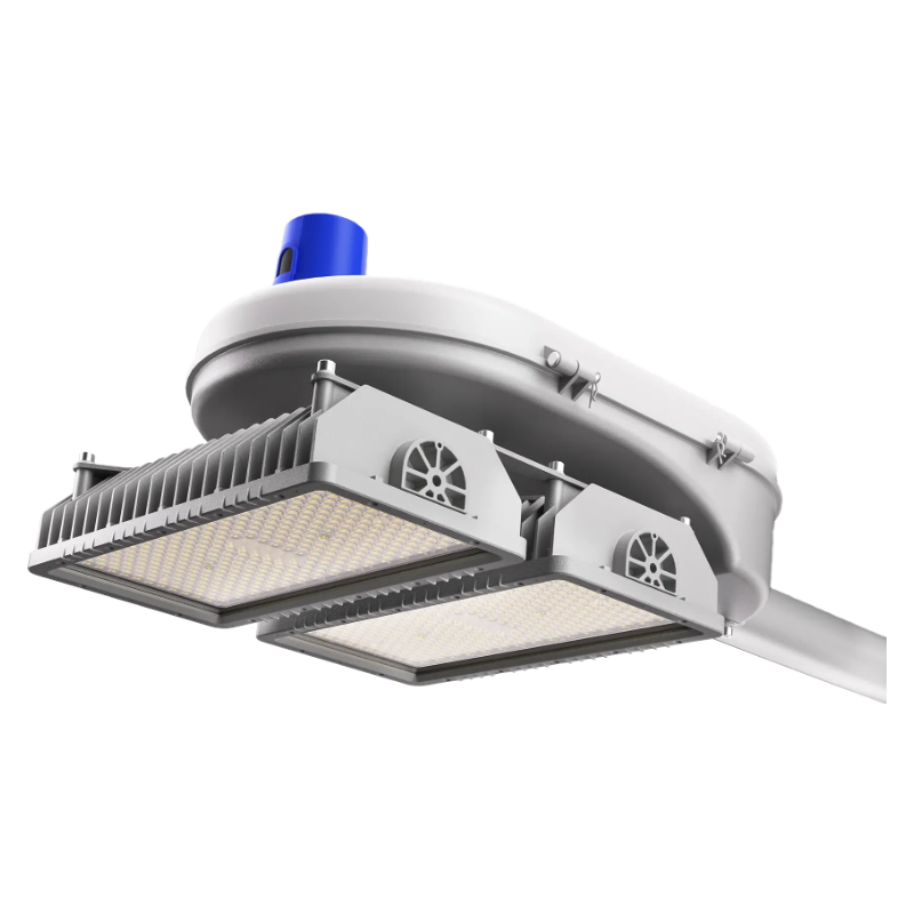

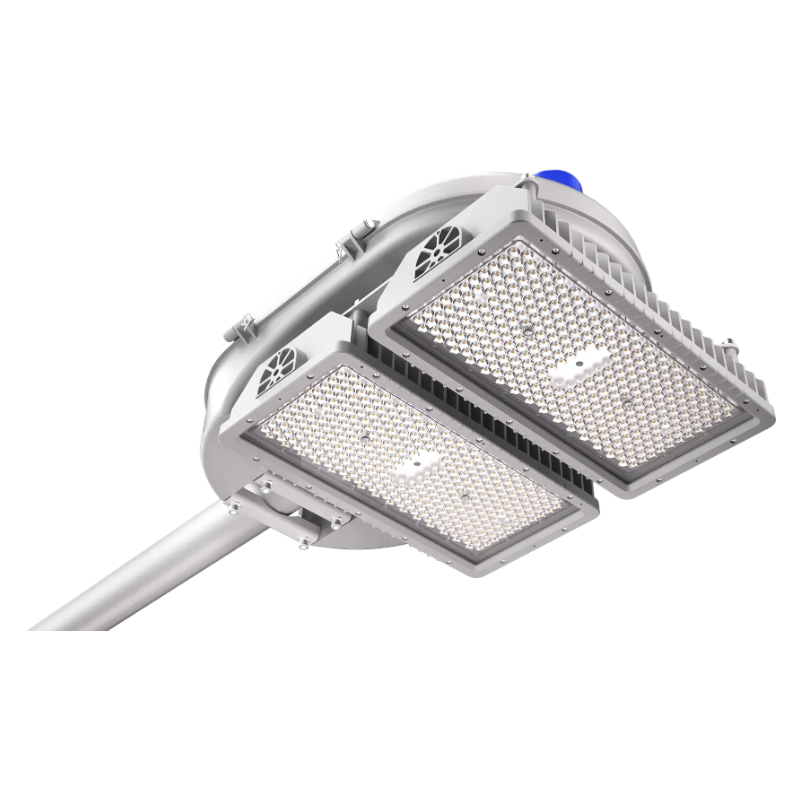

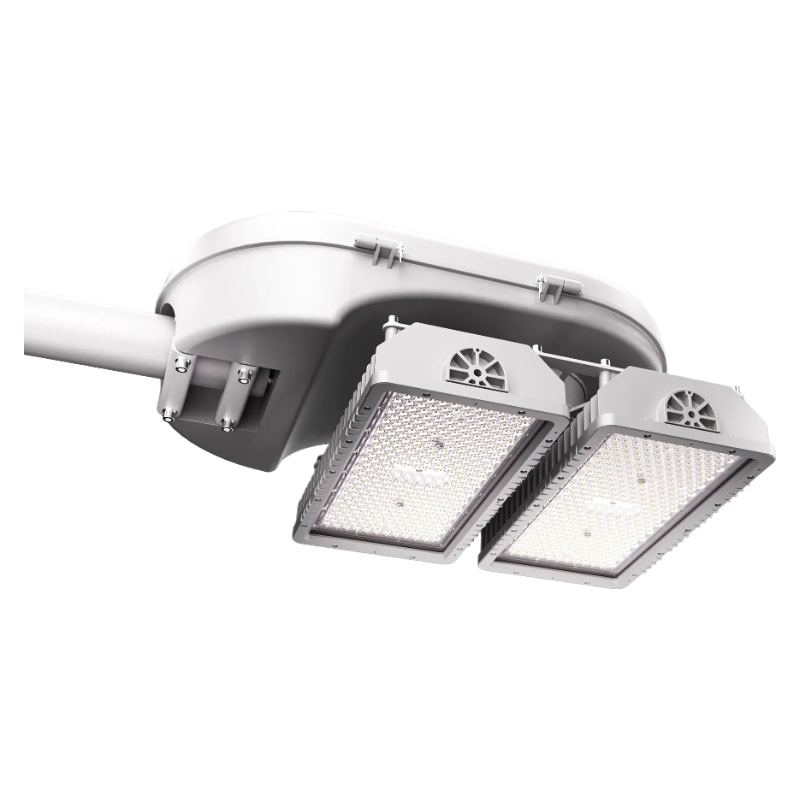

LED High Mast Light HM01-S

800W

$0.00

The ZC Lighting HMO1-S High Mast Light is a next-generation LED solution designed for large-area outdoor illumination such as ports, airports, highways, and industrial yards.

With modular flexibility, efficient heat dissipation, and smart lighting control compatibility, the HMO1-S series offers superior brightness, energy savings, and long-term reliability in the most demanding environments. Built for height. Engineered for endurance. Designed for professional outdoor performance.

Key Features

Feature	Description
💡 High Efficiency Lighting	Up to 175a lm/W, reducing energy cost by 60% vs. traditional lights.
🧩 Modular Design	Flexible 2–6 module configuration for power range up to 1000W.
🎯 Precision Optics	Beam angles: 15°, 30°, 45°, 60°, 90°, 120°, P45 — optimized for different heights and layouts.
🧊 Advanced Cooling System	Die-cast aluminum housing with integrated airflow channels for heat dissipation.
🌧️ IP66 Waterproof & IK10 Impact Resistant	Ensures performance in harsh outdoor environments.
⚡ 10KV/20KV Surge Protection	Built-in surge protector enhances reliability and safety.
🔌 Smart Lighting Ready	Supports DALI / 0–10V / DMX512 dimming for intelligent control systems.
🕒 Ultra-long Lifespan	Over 50,000 hours, minimizing maintenance costs for large projects.

📐 Electrical & Optical

Parameter	HM01S-800W	HM01S-1000W
Power (W)	800W	1000W
Input Voltage	AC90-305V/100-277V
Luminous Efficacy	155 Lm/W	150 Lm/W
Luminous Flux	124,000 Lm	150,000 Lm
Beam Angle	15°, 30°, 45°, 60°, 90°, 120°, P45
CCT	3000K / 4000K / 5000K / 5700K / 6500K
CRI	Ra70, Ra80, Ra90, TLCI90
SDCM	6
Power Factor	≥0.95
THD	<15%
Percent Flicker	<1%

⚙️Machinery & Materials

Parameter	HM01S-800W	HM01S-1000W
Structure Material	ADC12 die-cast aluminum
Surface Finish	Powder coated (Gray)
Lens	PC Lens
Aiming	Aiming 360° rotation

🔒Protection & Reliability

	Feature	Description
🌧️	IP66 Waterproof	Perfect for outdoor use under heavy rain, dust, or humidity.
💥	IK10 Impact Resistant	High-strength design prevents mechanical damage.
⚡	Surge Protection 20KV	Ensures stability during lightning or voltage fluctuations.
🌡️	Temperature Control System	Prevents overheating, extends LED lifespan.
🕒	50,000H Lifespan	Designed for continuous, maintenance-free operation.
⚙️	Operating Temperature	Tested for extreme temperatures from -40°C to +50°C.
